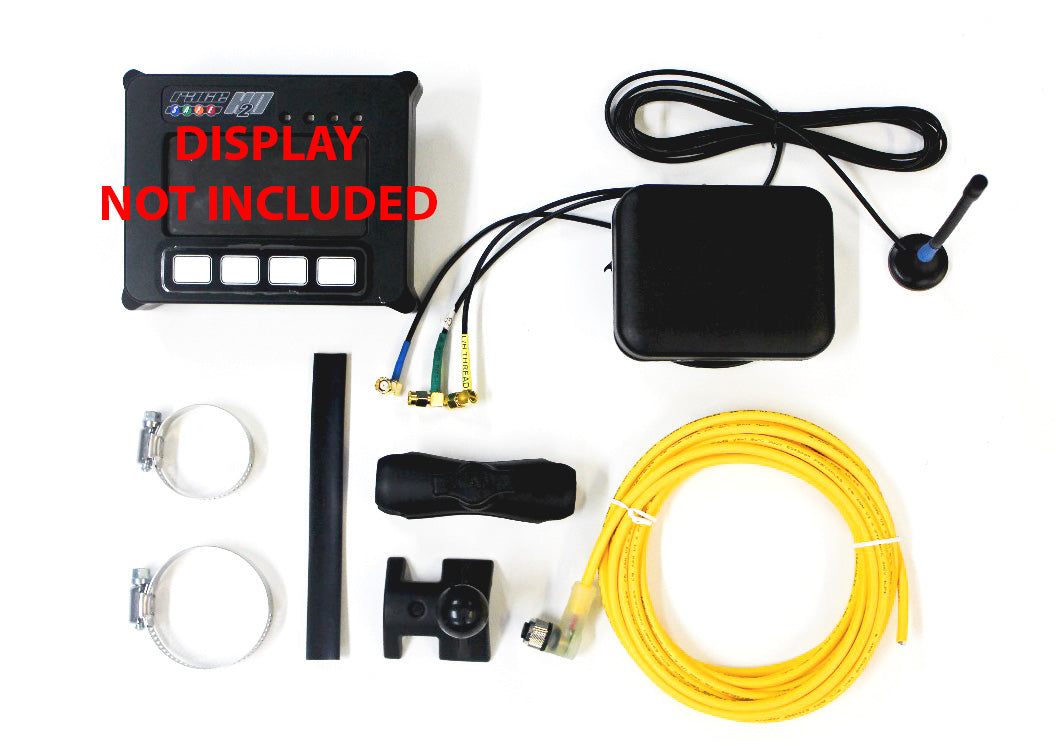

Rally Safe Permanent Installation Kit

RallySafe is the world’s most advanced rally management system. Using the latest technology, RallySafe is an all-in-one advanced safety, timing and tracking package and one of the most robust, feature-heavy technology platforms to ever be used in motorsport. The system comprises a unit for each vehicle, a cloud-based management portal, mobile apps, and timing/management accessories, all of which together provide advanced vehicle-to-vehicle/race control safety warnings, global tracking coverage and automated timing features.

Details of kit parts:

12v Wiring Loom
The wiring loom is the main power source for the Rally Safe unit, the wiring loom must be connected to a permanent power 12v source so the Rally Safe unit can function properly. The wiring loom comes in 3m & 5m lengths but can be shortened to the correct length.

3-in-1 Permanent Antenna
The 3-in-1 Permanent Antenna has 3 main aerial components that the RallySafe unit uses. 3-in-1 Permanent Antenna has a 12mm bolt at the base of the antenna which bolts through a hole in your roof, this allows the antenna leads to run through the bolt and into the vehicle cabin. This greatly reduces the potential damage to antenna leads, while offering a cleaner look both on the exterior and interior of the vehicle.
Please Note: This antenna requires a 12mm hole in the roof of the vehicle.

Internal Radio Antenna
The internal RF antenna is a secondary backup in the case of a catastrophic accident in which the primary antenna is destroyed. The RF antenna can beam a distress signal out to any oncoming vehicles.

Mount
There are two types of mounts. The most common is the Roll Cage Mount, which will fit any competitor vehicle with a roll cage installed. This mount clamps onto a round bar using a hose camp. Secondly there is the Flat Bolt On Mount that can be bolted to most flat surfaces. Both mounts have a 25mm rubber coated ball to fit the appropriate 25mm Mount Connector.

Mount Connector
This connects to mount to the RallySafe unit. This is done using the ball on the mount and the ball on the back of the RallySafe unit. Available in 50mm & 75mm length. We also have a temporary install kit available.
